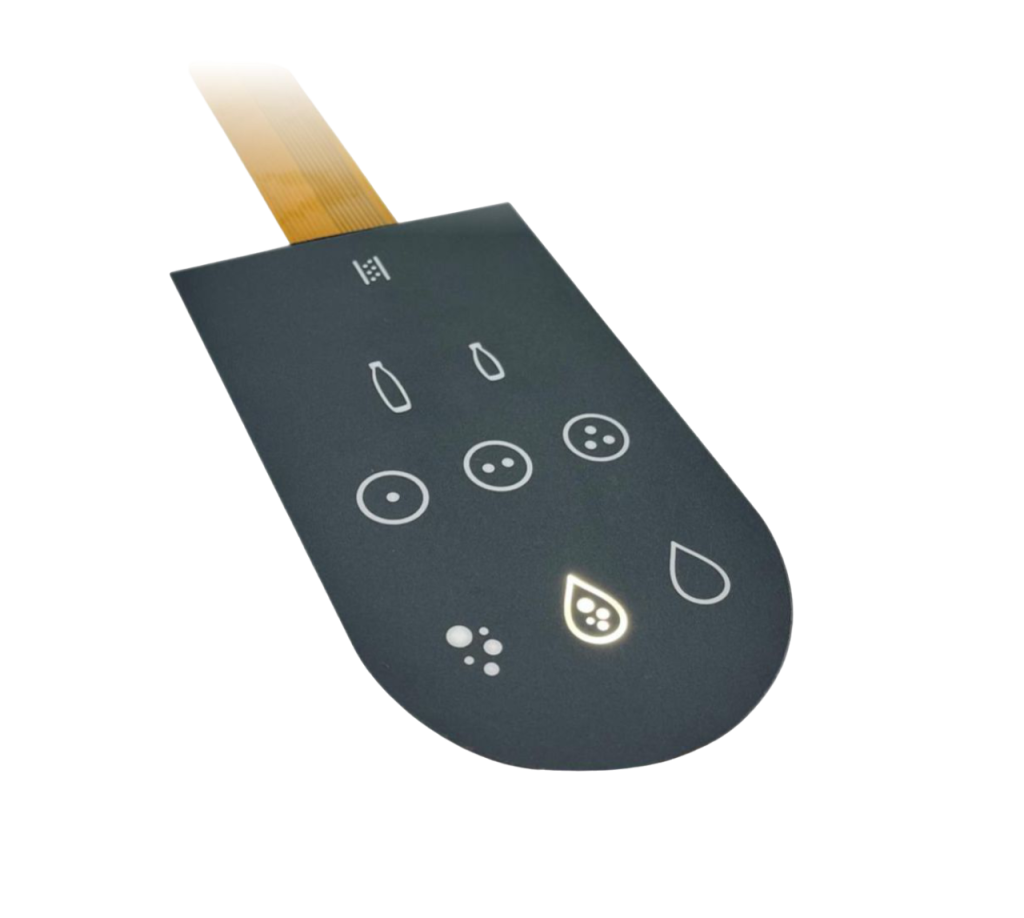

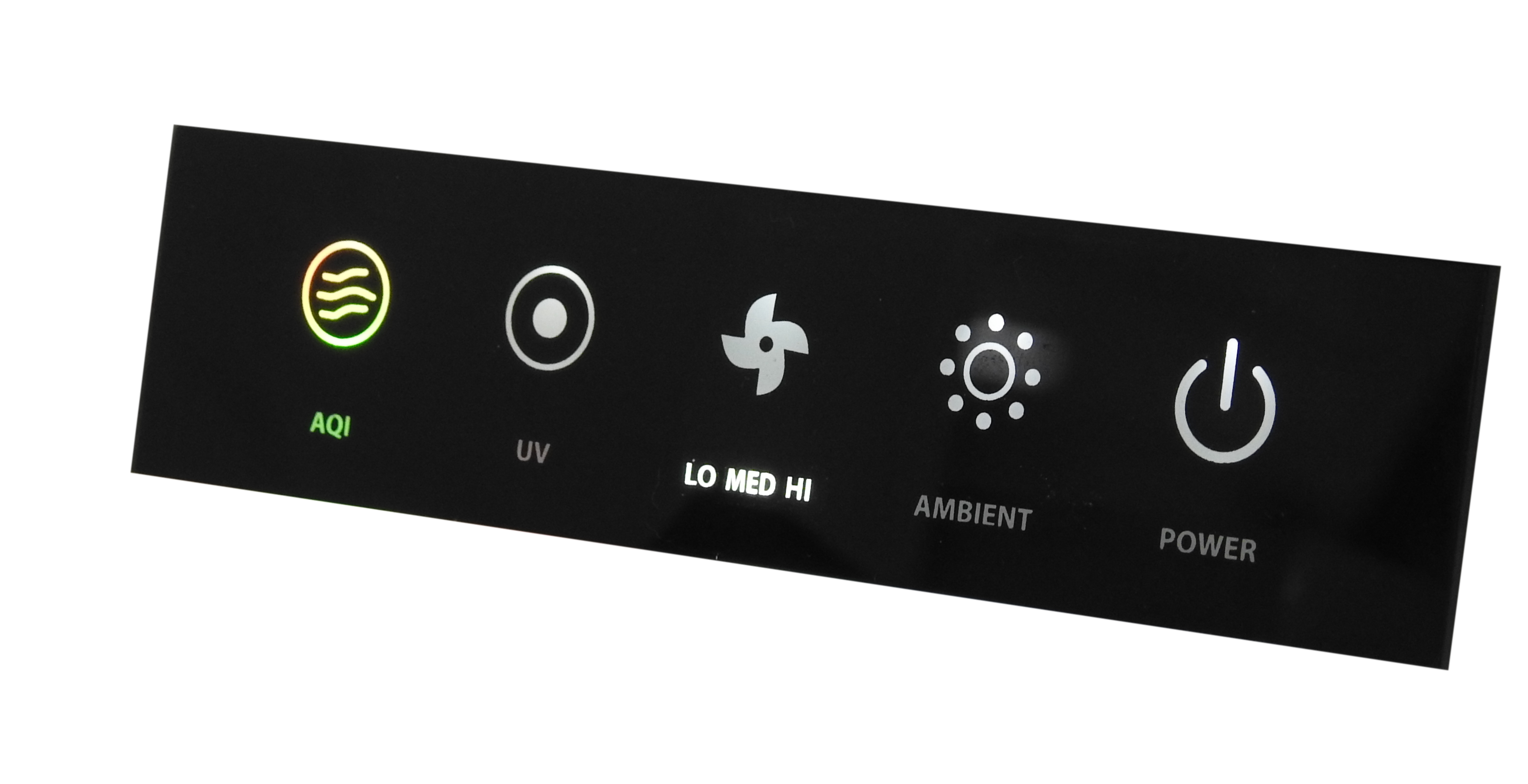

Membrane Switches with Backlight

Introduction

In modern electronic device design, user interface clarity and functionality are paramount. Membrane switches with backlight provide a robust solution by incorporating illumination directly into the switch design. This feature not only enhances visibility in low-light conditions but also improves the overall user experience by making the interface more intuitive and aesthetically pleasing.

Membrane switches with backlighting are an advanced solution designed to enhance the usability and visibility of electronic interfaces in low-light environments. These switches incorporate various backlighting technologies, such as LEDs and electroluminescent panels, to ensure that the interface remains easily visible and operable. This makes them ideal for a wide range of applications, including industrial controls, medical devices, consumer electronics, automotive dashboards, and more.

Key Features

1. Advanced Illumination

Membrane switches with backlighting are designed to provide clear and bright illumination to the switch interface. This is achieved through various advanced technologies:

LEDs (Light Emitting Diodes): LEDs are a popular backlighting choice due to their high efficiency, long lifespan, and availability in a wide range of colors. They provide bright and even illumination, making the interface easily readable
Electroluminescent (EL) Panels: EL panels are thin, flexible sheets that emit light when an electric current is applied. They provide a uniform glow and are ideal for applications requiring thin, flexible lighting solutions.

1. Advanced Illumination

Membrane switches with backlighting are designed to provide clear and bright illumination to the switch interface. This is achieved through various advanced technologies:

LEDs (Light Emitting Diodes): LEDs are a popular backlighting choice due to their high efficiency, long lifespan, and availability in a wide range of colors. They provide bright and even illumination, making the interface easily readable
Electroluminescent (EL) Panels: EL panels are thin, flexible sheets that emit light when an electric current is applied. They provide a uniform glow and are ideal for applications requiring thin, flexible lighting solutions.

2. Enhanced User Experience

Backlit membrane switches significantly improve the user experience by making the interface more intuitive and easier to use. The illuminated keys and symbols guide users in dark conditions, reducing errors and enhancing operational efficiency. This feature is particularly beneficial in critical applications such as medical devices and industrial controls where precise operation is crucial.

2. Enhanced User Experience

3. Customizable Lighting Options

Backlit membrane switches offer extensive customization in terms of lighting color, intensity, and pattern. This flexibility allows for tailored solutions that meet specific application needs and design aesthetics. For example:

Color Customization: Different colors can be used to highlight specific keys or functions, making it easier for users to identify and operate them.
Intensity Control: The brightness of the backlighting can be adjusted to suit the environment or user preferences.
Pattern Design: Custom lighting patterns can be created to enhance the visual appeal of the interface or to provide specific visual cues.

3. Customizable Lighting Options

Color Customization: Different colors can be used to highlight specific keys or functions, making it easier for users to identify and operate them.
Intensity Control: The brightness of the backlighting can be adjusted to suit the environment or user preferences.
Pattern Design: Custom lighting patterns can be created to enhance the visual appeal of the interface or to provide specific visual cues.

Benefits

Improved Visibility

The primary benefit of backlit membrane switches is their ability to provide excellent visibility in low-light or dark environments. This ensures that users can accurately interact with the device regardless of the lighting conditions, enhancing usability and reducing the risk of errors.

Aesthetic Appeal

Backlighting adds a modern and professional look to the switch interface. This aesthetic enhancement can be particularly valuable in consumer electronics and high-end applications where visual appeal is important.

Enhanced Functionality

The illumination of keys and symbols improves functionality by guiding users effectively in low-light conditions. This is especially important in applications where accurate and timely operation is critical, such as in medical devices or industrial controls.

Energy Efficiency

Modern backlighting methods, particularly LEDs, are designed to be energy-efficient. This ensures that the addition of backlighting does not significantly impact the overall power consumption of the device. This is particularly important in battery-operated devices where power efficiency is crucial.

Backlighting Methods

LED Backlighting: LEDs are the most common and versatile backlighting method used in membrane switches. They offer several advantages:

High Brightness: LEDs provide bright and clear illumination, ensuring that the switch interface is easily visible.
Customizable Colors: LEDs are available in a wide range of colors, allowing for extensive customization of the switch interface.
Energy Efficiency: LEDs consume very little power, making them ideal for energy-efficient applications.
Long Lifespan: LEDs have a long operational life, reducing the need for frequent replacements and maintenance.

Electroluminescent (EL) Panels: EL panels are thin, flexible sheets that emit light when an electric current is applied. They offer several unique advantages:.

Even Illumination: EL panels provide a uniform glow, ensuring that the entire switch interface is evenly illuminated.
Thin and Flexible: EL panels are extremely thin and flexible, making them ideal for applications where a low profile is required.
Low Power Consumption: EL panels consume very little power, making them suitable for energy-efficient applications..

Applications

Medical Devices

Backlit membrane switches are widely used in medical equipment where visibility in low-light conditions is crucial. The illumination helps healthcare professionals operate devices accurately and efficiently, even in dimly lit environments.

Consumer Electronics

In products like remote controls, gaming devices, and home appliances, backlit switches enhance the user experience by providing a sleek and modern appearance. The illuminated interface makes it easier for users to interact with the device in low-light conditions.

Industrial Controls

Backlit switches are ideal for industrial environments where lighting conditions may vary. The enhanced visibility ensures that operators can see and use the controls accurately, improving safety and efficiency in the workplace.

Automotive Dashboards

In vehicles, backlit membrane switches improve the visibility of controls and displays, enhancing safety and usability for drivers. The illuminated interface ensures that drivers can easily locate and operate controls in low-light conditions.

Aerospace and Military Equipment

These applications require reliable and visible controls in all lighting conditions. Backlit membrane switches provide the necessary illumination and durability to meet the demanding requirements of aerospace and military environments.

Conclusion

Membrane switches with backlighting offer an innovative and effective solution for enhancing the functionality and user experience of electronic interfaces. By providing superior visibility and customizable lighting options, these switches meet the specific needs of various industries, ensuring optimal performance and user satisfaction. Whether for medical devices, consumer electronics, industrial controls, automotive dashboards, or aerospace equipment, backlit membrane switches provide the reliability and functionality required for today’s advanced applications.
