PCB BASED MEMBRANE KEYPAD
What is PCB-Based Membrane Keypads?

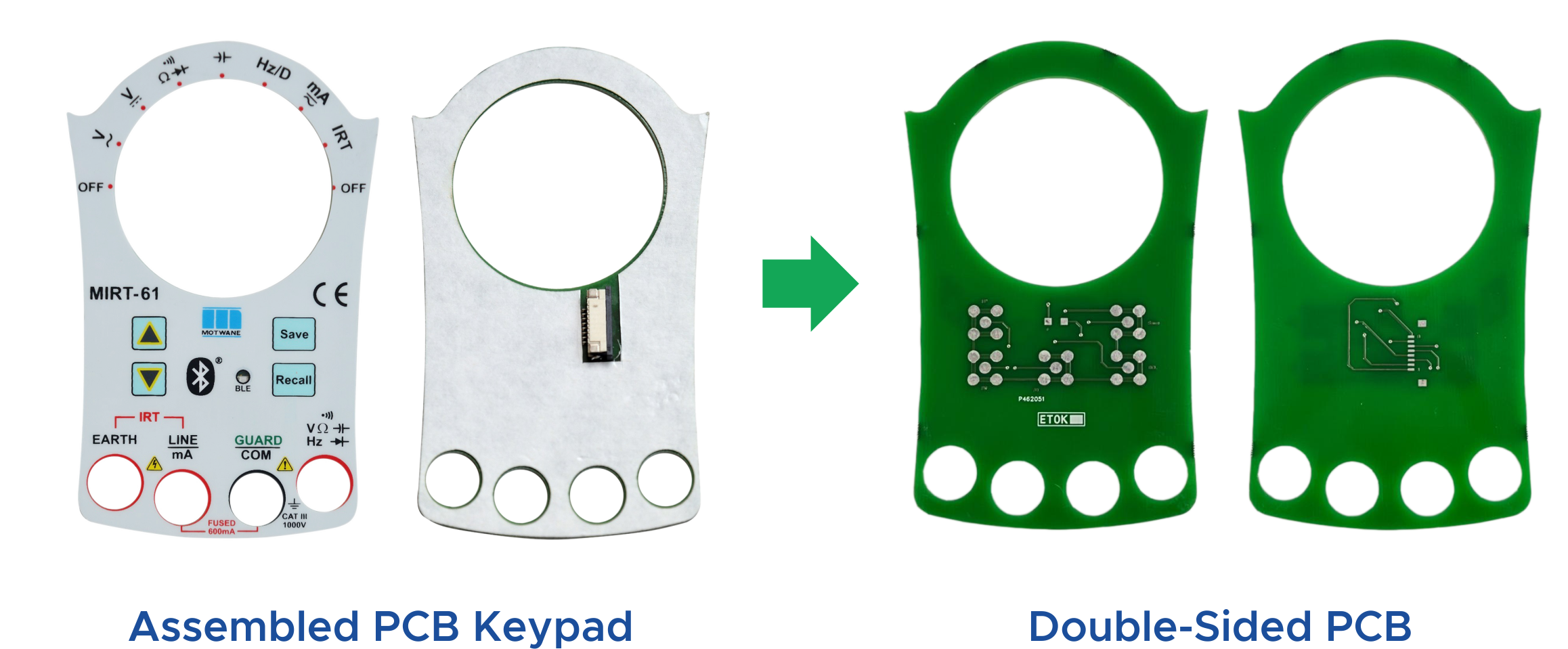

PCB-based membrane keypads are a type of user interface technology that combines the flexibility of membrane switches with the robustness of printed circuit boards (PCBs). These keypads consist of multiple layers, including a top membrane layer, a spacer layer, and a bottom PCB layer.
How Do They Work?
The top membrane layer, typically made of flexible polyester or polyethylene material, contains printed symbols and graphics corresponding to the keys or buttons on the keypad. When a key is pressed, the membrane layer flexes down, making contact with the conductive traces on the bottom PCB layer. This completes an electrical circuit, sending a signal to the electronic device or controller to register the keypress.
Advantages of PCB-Based Membrane Keypads
Applications
PCB-based membrane keypads find applications in a wide range of industries, including:
Consumer Electronics
Industrial Control Panels
Medical Devices
Why Choose Rangvishwa?
Expertise
With years of experience in membrane keypad design and manufacturing, we have the knowledge and expertise to deliver high-quality solutions that meet your requirements.
Quality Assurance
Our stringent quality control processes ensure that every keypad meets our high standards for performance and reliability.
Customization Options
We offer a range of customization options, including keypad layout, graphic design, and tactile feedback, allowing you to create a unique interface for your product.
Get Started Today
Ready to integrate PCB-based membrane keypads into your next project? Contact us today to learn more about our capabilities and how we can help bring your vision to life.
